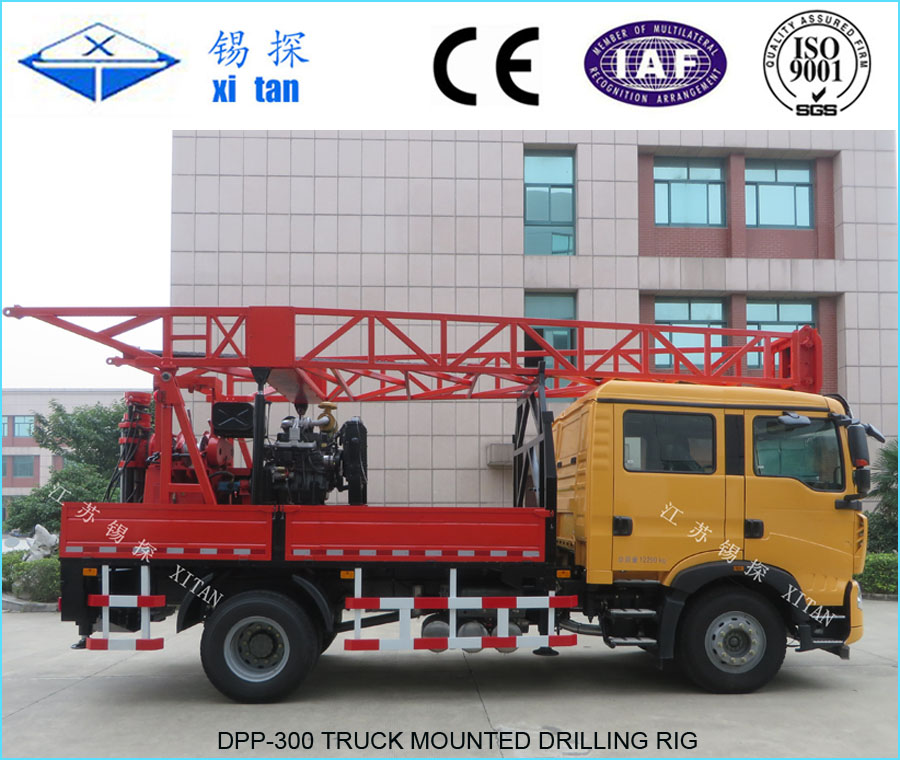

DPP-300 Truck Mounted Drilling Rig with Hole Depth 150m - 600m
Specifications:
| Hole depth(core drilling) | 600m | Rod dia | 42mm |
| Hole depth(core drilling) | 360m | Rod dia | 50mm |
| Hole depth(core drilling) | 300m | Rod dia | 60mm |
| Hole depth(wire-line drill rod) | 430m | Rod dia | BQ |
| Hole depth(wire-line drill rod) | 330m | Rod dia | NQ |
| Spindle speed | Forward speed:76;132;209;288;359；623；983;1357r/min |
| Reverse speed:60;280r/min |
| Stroke of spindle | 600mm |
| Max .lifting capacity | 80KN |
| Max.torque of spindle | 3500N.m |
| Max.feeding capacity | 60KN |
| Main winch | Steel Wire Cable Dia | 16 mm |
Max .lifting capacity (single line): | 30KN |
| Lifting speed(the third layer): | 0.57;0.98;1.55;2.15m/s |
| Oil Pump | Type: single pump |
| Power | Diesel engine | 40kw,2000rpm |
| Backward Stroke | 350 mm |
| Weight (less engine) | 10810kg |
| Dimensions (L×W×H): | 8250×2500×3700mm |
Quick Detail:
1. There are more speed grade (8 grades), reasonable speed range,
with low speed but high torque.
2. The rig is adapted for core drilling with carbide and diamond bit,
It is also suitable for engineering geological exploration, well
drilling,blast hole, exploring gas and basic pile foundation
engineering.
3. It is convenient for you to treat trouble with two reverse
speeds.
4. By using hydraulic chuck, It is in strong and steady clamping
force. By using the hydraulic fed, the drilling rig can move back
directly.
Description:
1. There are more speed grade (8 grades), reasonable speed range,
with low speed but high torque.
2. The rig is adapted for core drilling with carbide and diamond
bit, It is also suitable for engineering geological exploration,
well drilling,blast hole, exploring gas and basic pile foundation
engineering.
3. By using hydraulic chuck, It is in strong and steady clamping
force. By using the hydraulic fed, the drilling rig can move back
directly.
4. It is convenient for you to treat trouble with two reverse
speeds.
5. It is compact in construction, rational in overall arrangement,
moderate in weight, convenient in assembling and wide in range of
rotation speed.
Applications:
1. Core drilling with carbide and diamond bit .
2. Engineering geological exploration.
3. Well drilling.
4. Basic pile foundation engineering.
5. Blast hole, exploring gas.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded
in 1956.it has developed core-drill machine, geologic exploration
drilling rig, anchoring drill rig,jet-grouting drill rig and so on.
At present, the products has been exported to Southeast Africa,
Asia and other global markets.
