GXY-2 Hydraulic Core Drilling Rig

Ask Lasest Price
Brand Name :	xitan
Certification :	ISO9001:2008
Model Number :	GXY-2
Price :	Contact us
Delivery Time :	One Month
Payment Terms :	T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability :	One set per month

Add to Cart

Product Details
Company Profile

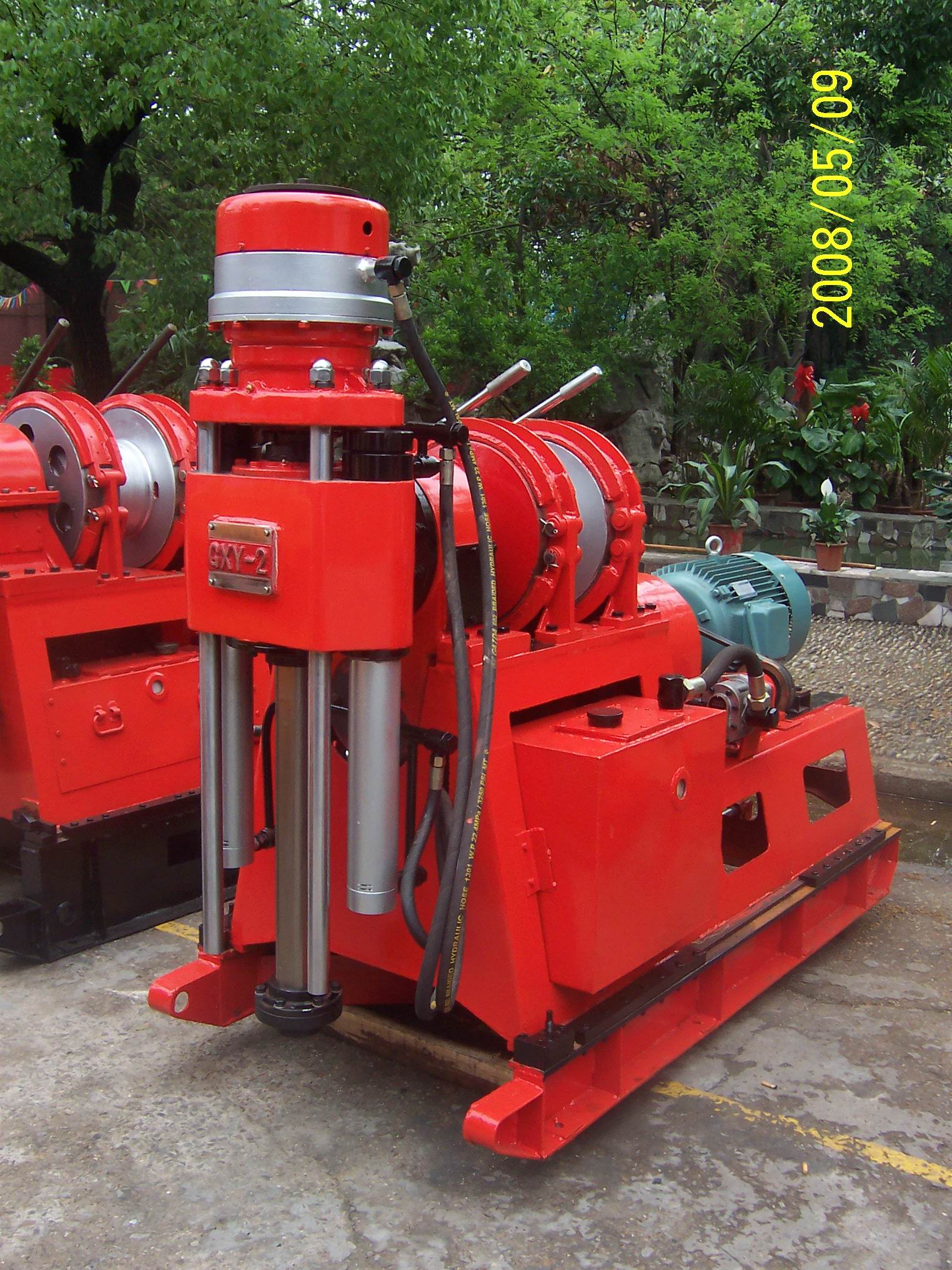

GXY-2 Hydraulic Core Drilling Rig

GXY-2 Hydraulic Core Drilling Rig

Quick Detail:

1.There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m.
2.GXY-2 drilling rig can be uesed as the core drilling if the depth beyond 300m.
3.Easy to master the hole condition with a long life anti-vibration meter.
4.It is convenient for you to treat trouble with two reverse speeds. It is convenient for clamping and loosing drill heave with hydraulic chuck.
5.By using hydraulic chuck, It is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.

Description:

1. Model GXY-2 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel,it is aso could for explore coal mine.
2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.
3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in 1000kg, it can be moved easily especially in mountain area.

Specifications:

Hole depth	300-600m
Rod dia	42mm/50mm
Hole angle(°)	360°
Spindle speed	Forward speed:70;121;190;263;329;570;899;1241rpm
	Reverse speed:55/257rpm
Stroke of spindle	600mm
Max .lifting capacity	25KN
Max .feeding capacity	20KN
Max .distance from the spindle lower to the earth surface	600mm
Hoist	Max .lifting capacity (single line):	15KN
	Lifting speed:	0.2;0.52;1.05;2.06m/s
Power	Electric motor:	11kw,2200rpm
	Diesel engine	S1100 or S1100M
Weight	500kg
Dimensions (L×W×H)	1450×970×1280mm

Applications:

1.Engineering geological exploration.
2.Exploring the coal mine.
3.Survey and exploration of solid mineral deposit.
4.Water discharge tunnel.
5.Inspecting hole of various concrete stucture.

Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
