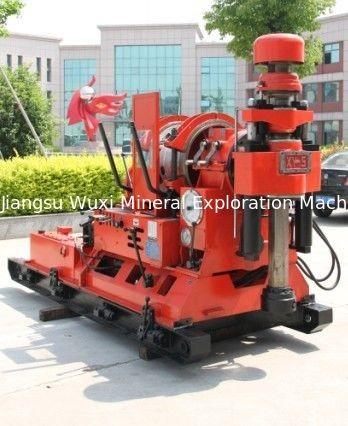

XY-5 High Torque 6150N.m Core Drilling Rig,Water Well Drilling Rig
Quick Detail:
1. There are more speed grade (8 grades), reasonable speed range,
with low speed but high torque. The rig is adapted for core
drilling with carbide and diamond bit, It is also suitable for
geological prospecting, water well drilling as well as foundation
pile construction in large diameter.
2. With powerful drilling capacity, the rated drilling depth comes
up to 1,300m with wire line 71mm drill rod. With large spindle I.D.
96mm, the rig is fed with hydraulic cylinders with longer stroke up
to 500mm.
3. The rig can be adapted on many fields, especially on large
diameter drill rod drilling, with wire line coring (upper part
coring).It is more effective in improving drilling efficiency with
less incidents in hole.
Description:
1. XY-5 is a core drilling rig for deep hole. It not only apply to
core drilling with carbide and diamond bits but also be used on
areas such as engineering geological exploration, water well
drilling as well as foundation pile construction in large diameter.
2. With powerful drilling capacity, the rated drilling depth comes
up to 1,300m with wire line 71mm drill rod. With large spindle I.D.
96mm, the rig is fed with hydraulic cylinders with longer stroke up
to 500mm.
3. It is compact in construction, rational in overall arrangement,
moderate in weight, convenient in assembling and wide in range of
rotation speed.
Specifications:
| Hole depth(Geologic drill rod) | 1600m | Rod dia | 50mm |
| Hole depth(Geologic drill rod) | 1300m | Rod dia | 60mm |
| Hole depth(Wire-line drill rod) | 1300m | Rod dia | S75 |
| Hole depth(Wire-line drill rod) | 1000m | Rod dia | S95 |
| Spindle speed | Forward speed:87;170;267;301;362;591;928;1262rpm |
| Reverse speed:67;230rpm |
| Stroke of spindle | 500mm |
| Max .lifting capacity | 135KN |
| Max.torque of spindle | 6150N.m |
| Max .feeding capacity | 90KN |
| Hoist (Type: Planetary gearing transmission) | Steel Wire Cable Dia | 18.5 mm |
Max .lifting capacity (single line): | 40KN |
| Lifting speed(the third layer): | 0.89;1.74;2.73;3.18m/s |
| Clutch: | Type: several-piece wet type friction, normally open type |
| Gearbox | Type: Sliding Gear Gearbox (4 positive speeds and 1 negative speed) |
| Oil Pump | Type: Double Gear Pump |
| Retraction cylinder stroke : | 550mm |
| Distance between drill and hole | 250mm |
| Power | Electric motor: | 55kw,1480rpm |
| Diesel engine | 56kw,1480rpm |
| Drill Frame | Type: Sliding Skids (with sliding base) |
| Weight (less engine) | 3500kg |
| Dimensions (L×W×H): | 3190×1450×2140mm |
Applications:
1. Core drilling with carbide and diamond bit .
2. Engineering geological exploration.
3. Water well drilling.
4. Basic pile foundation engineering in large diameter.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded
in 1956.it has developed core-drill machine, geologic exploration
drilling rig, anchoring drill rig,jet-grouting drill rig and so on.
At present, the products has been exported to Southeast Africa,
Asia and other global markets.
