Anchor Drilling Rig Foundation Piling Machine DTH hammer MDL - 150H

Ask Lasest Price
Brand Name :	Xitan
Model Number :	MDL-150H
Certification :	ISO9001，ISO14000
Price :	contact us
Payment Terms :	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5+set+per month

Add to Cart

Product Details
Company Profile

Anchor Drilling Rig Foundation Piling Machine DTH hammer MDL - 150H

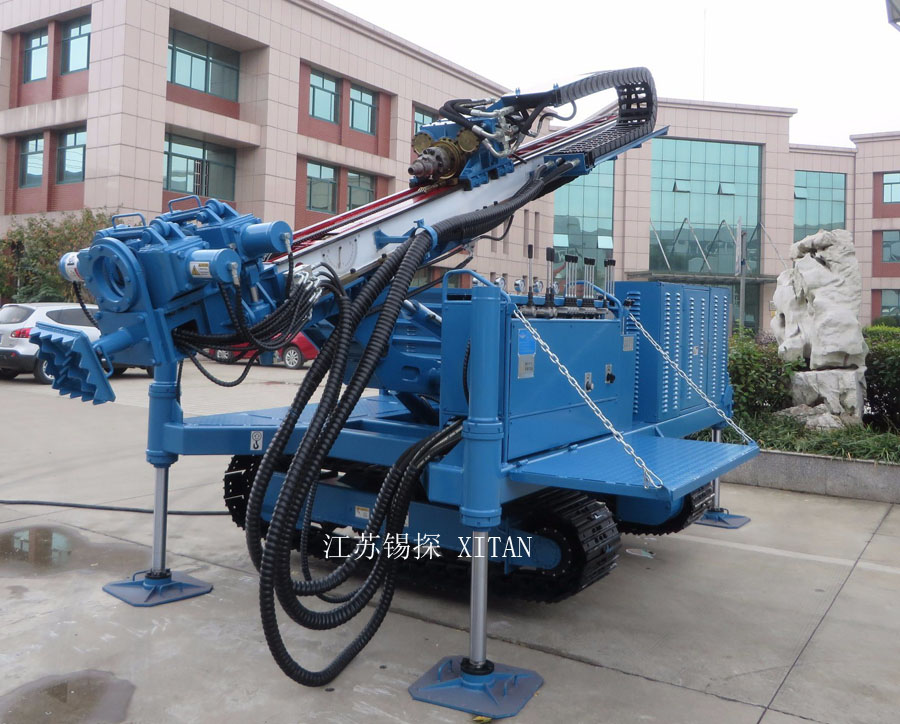

MDL-150H CRAWLER ANCHOR DRILLING RIG

Specification:

TYPE	MDL-150H
Diameter(mm)	Φ150~Φ250
Depth(m)	130-170
Rod dia(mm)	Φ73,Φ89,Φ102,Φ114
Drill angle(°)	0-100
Max drill arm level height(m)	3.3
Crawler max height to ground(m)	0.7
Rotary head speed(r/min)	10/20/30/35/40/60/ 65/70/85/130/170
Rotary head Torque(N.m)	7500
Stroke(mm)	3400
Mast sliding stroke(mm)	1500
Rotary head lifting force(KN)	70
Rotary head lift speed(m/min)	0~5/7/23/30
Rotary head feeding force(KN)	36
Feeding speed(m/min)	0~10/14/46/59
Power(KW)	55+18.5+2.2
Weight(kg)	6500
Overall(L×W×Hmm)	5400×2100×2000

Discription:

1. MDL-150H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig. It is mainly applied in anchoring hole of deep foundation,urban subway,slope supporting, tunnel,high building,airport,geothermal construction,pipe shed and so on.
2. The route of shaft bracket is 3.4 meters, so the 150H crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.
3. MDL-150H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.
4. The big arm like excavator with double cylinders has the stability of any lifting condition.
5. The crawler from the ground space is so large to adapt for bad environment construction.
6. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

Application:

1. Urban subway, high-rise buildings, airport, Geothermal hole,foundation anchoring.
2. Jet grouting and dewatering.
3. The blast hole,the anti-floating anchoring hole.
4. It can be also used for pipe shed engineering.
