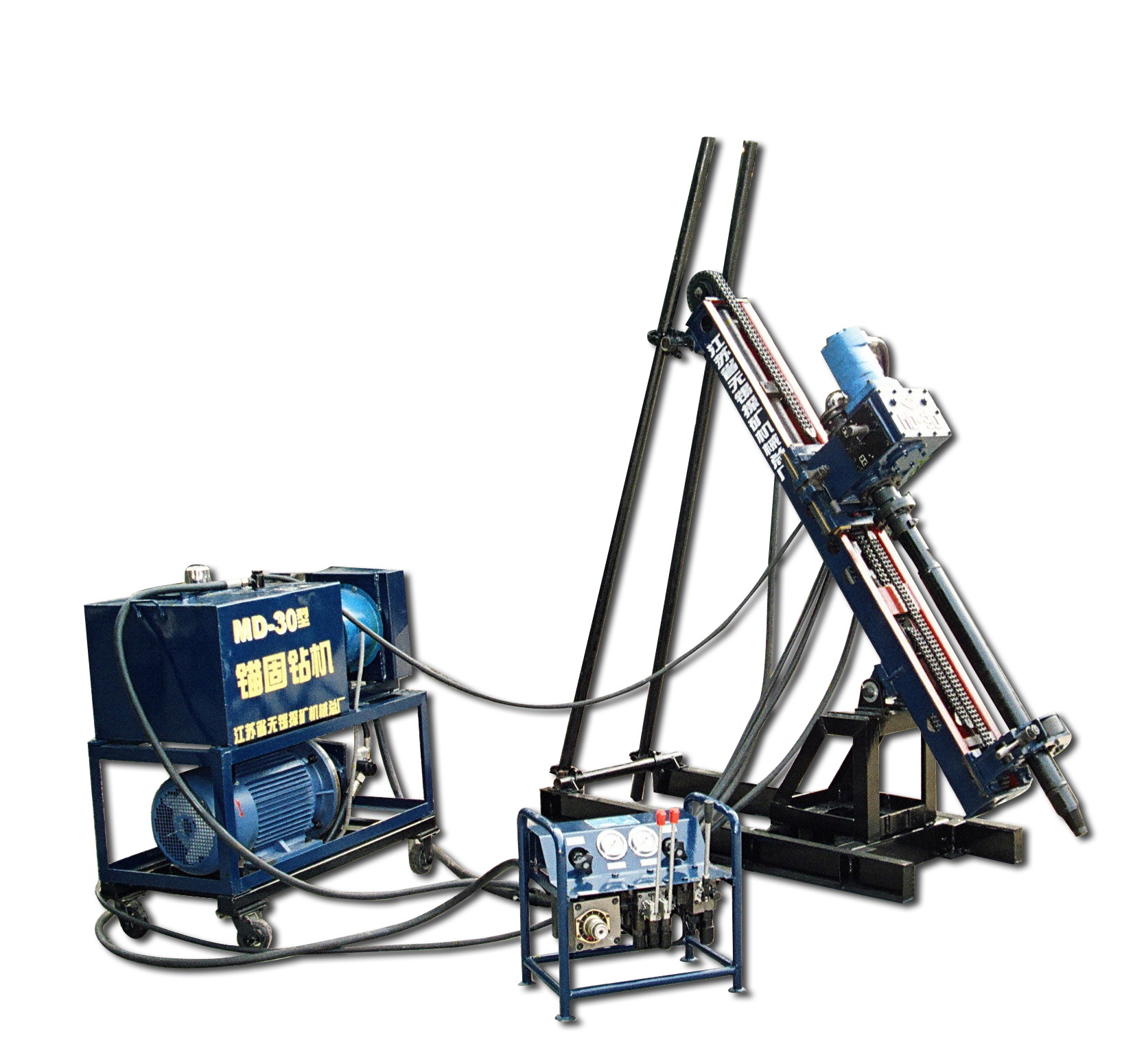

MD-30 Prevent Or Solve Geologic Calamity Anchor Drilling Rig
Specifications:
| Hole depth | 30-50m |
| Rod dia. | 65-130mm |
| Hole angle(°) | -15-90° |
| Output rotary speed of power head | Forward and reverse:0-42r/min,0-118r/min |
| Stroke of power head | 1200mm |
| Output torque of power head | 1600N.m |
| Lifting force of power head | 22KN |
| Feeding force of power head | 15kN |
| Power | Electric motor: | 15KW |
Quick Detail:
1. MD-30 drilling rig is a full hydraulic operated top drive power
head drill. It is used to drill anchor hole at side slope of water
power station, railway or highway projects, as well as drainage
holes. It also used to prevent or solve geologic calamity, such as
landslide and rock collapse etc. In addition, it is also used to
drill small sized water well and high-pressure jet grouting hole.
2. Rig structure is separate group design, it assures good
disassembling, rapid and convenient mount and transport, best
working environment and lower labor strength.
3. Full hydraulic drive and ensures, stepless shift, simple
operate, convenient maintain and few wearing parts.
Description:
1.MD-30 construction drilling rig is a full hydraulic operated top
drive power head drill. It is used to drill heavy duty pretension
anchor hole at side slope of water power station, railway or
highway projects, as well as drainage holes. It also used to
prevent or solve geologic calamity, such as landslide and rock
collapse etc. In addition, it is also used to drill small sized
water well and high-pressure jet grouting hole. It is already
widely used in various projects such as water power stations. It
has become the first priority for medium-duty anchoring-reinforcing
projects in China.
2.The rig is suitable for various drilling methods such as carbide
bit drilling, auger drilling, DTH hammer drilling, follow-up casing
drilling, etc.
3.Rig structure is separate group design, it assures good
disassembling, rapid and convenient mount and transport, best
working environment and lower labor strength.
4.Full hydraulic drive and ensures, stepless shift, simple operate,
convenient maintain and few wearing parts.
Applications:
1. It is used to drill anchor hole at side slope of water power
station, railway or highway projects, as well as drainage holes. It
also used to prevent or solve geologic calamity, such as landslide
and rock collapse etc. In addition, it is also used to drill small
sized water well and high-pressure jet grouting hole.
2. It is also used to drill high-pressure jet grouting holes.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded
in 1956.it has developed core-drill machine, geologic exploration
drilling rig, anchoring drill rig,jet-grouting drill rig and so on.
At present, the products has been exported to Southeast Africa,
Asia and other global markets.
