Multi Function Drilling Machine For Jet Grouting And Anchoring

MDL-135D CRAWLER ANCHOR DRILLING RIG

Quick detail:

1. MDL-135D drilling rig is a kind of full hydraulic power head crawler drilling rig. Its drilling depth is 100-140m, and drilling diameter150-250mm.

2. The great rotary torque and long feeding stroke distance of the drilling rig make the speed of borehole faster, the disposal capability of accident better and efficiency of drilling work higher.

3. The equipment is mounted on the crawler with the turning platform mechanism which makes the moving and walking more and more convenient.

4. This rig can be used for single,double and triple tube jet grouting drilling,and can be used with double casing drilling.

Application:

1. subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.

2. Single,double,triple Jet grouting

3. This engineering drill rig can be used for drilling geothermal hole and well.

4. The blast hole,the anti-floating anchoring hole .

Specification:

Hole depth	100-140m
Rod diameter	150-250mm
Hole angle(°)	0-90°
Output rotary speed of power head	10/20/25/40/50/60/70/100/120/140r/min
Stroke of power head	3400mm
Output torque of power head	6800N.m
Stroke of slide frame	900mm
Lifting force of power head	65KN
Feeding force of power head	33kN
Power	Electic motor 55+18.5+2.2KW
Weight	6000KG
Dimensions (L×W×H)	5400×2100×2000mm

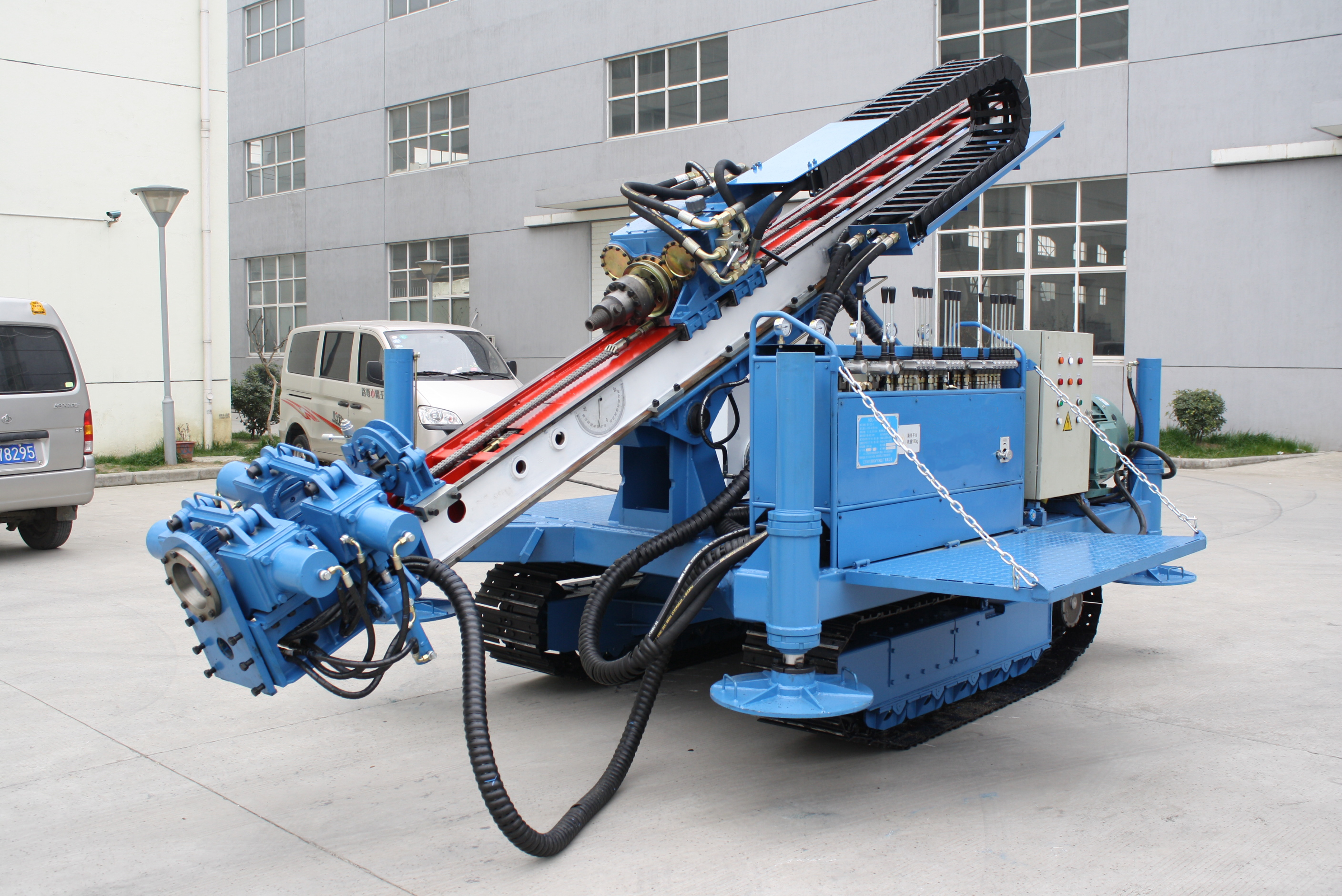

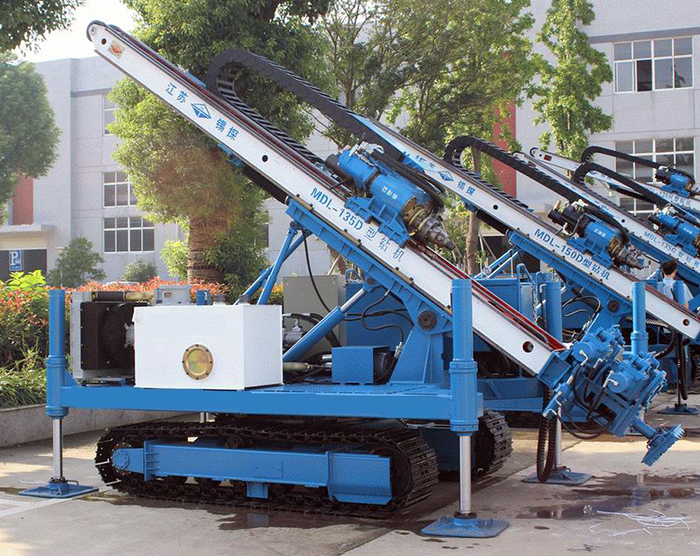

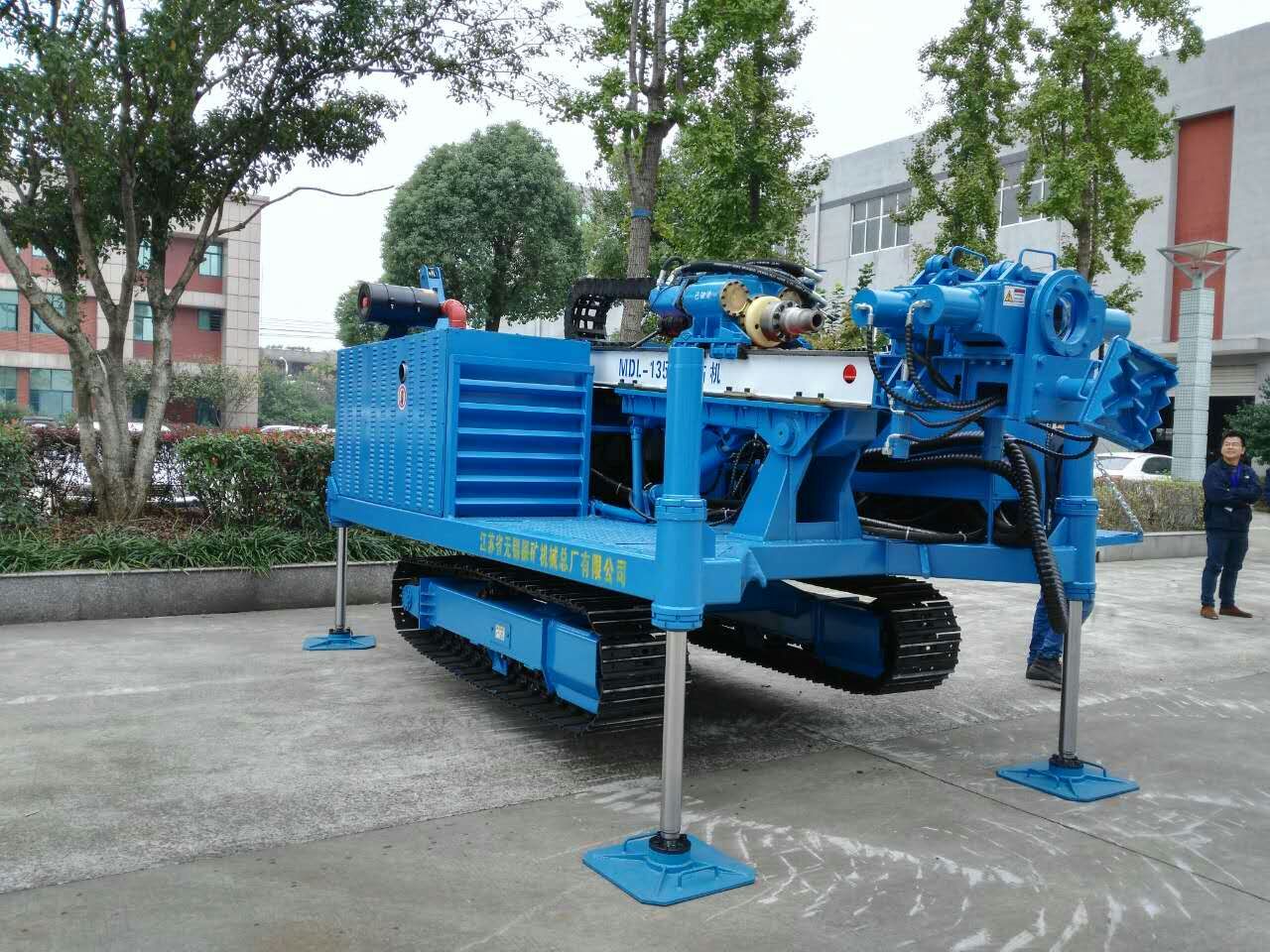

Photos:
