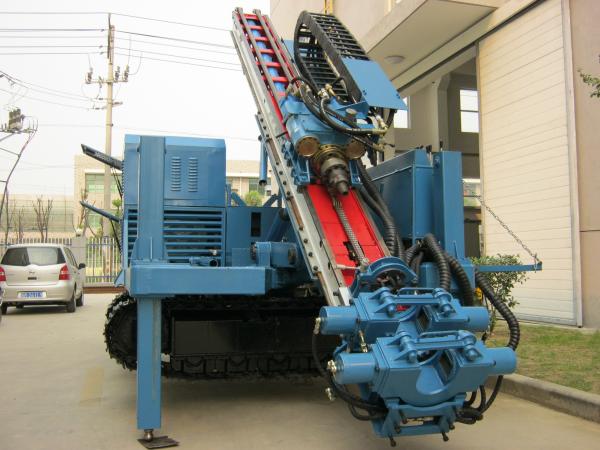

MDL-135G High Speed Jet Grouting Drilling Rig , Anchor Drilling Rig For
Urban Subway
Quick Detail:
1. MDL-135G drilling rig is a kind of full hydraulic power head
multifunctional crawler drilling rig. By altering jet grouting
module, the 135G anchor drilling rig can be used for jet grouting
construction.
2. It can apply to the construction of big tonnage stress anchoring
hole for water power station, railway, highway, drainage hole and
geologic calamity for landslide prevention and rock collapse. Its
drilling diameter is 150-250mm, and drilling depth 100-140m.
3. The anchor drilling machine is an integral type, and is equipped
with crawler chassis and holding shackle.
4. The hydraulic clamp & wrench device enormously decreases the
assistant time and also reduces the intensity of operating work.
Description:
1. MDL-135G drilling rig is a kind of full hydraulic power head
multifunctional crawler drilling rig.
2. It can apply to the construction of big tonnage stress anchoring
hole for water power station, railway, highway, drainage hole and
geologic calamity for landslide prevention and rock collapse. Its
drilling diameter is 150-250mm, and drilling depth 100-140m.
3. This multifunctional drilling rig is applicable to deep
foundation anchoring support. By altering jet grouting module, the
135G anchor drilling rig can be used for jet grouting construction.
4. In addition, this anchor crawler drilling rig is stable,
efficient , and able to drill complex layers and deal with
accidents.
5. The hydraulic clamp & wrench device enormously decreases the
assistant time and also reduces the intensity of operating work..
6. The anchor drilling machine is an integral type, and is equipped
with crawler chassis and holding shackle.
Specifications:
| Hole depth | 130-170m |
| Rod dia | 150-250mm
|
Hole angle(°)
| 0-90° |
| Output rotary speed of power head | 10/20/30/35/40/60/65/70/85/130/170r/min |
| Stroke of power head | 3400mm |
| Output torque of power head | 7500N.m |
| Stroke of slide frame | 900mm |
| Lifting force of power head | 70KN |
| Feeding force of power head | 36kN |
| Power | Electric motor: | 55+18.5+2.2KW |
| Weight | 6000KG |
| Dimensions (L×W×H) | 5400×2100×2200mm |
Applications:
1.Urban subway, high-rise buildings, airport, ground source heat
pump and other deep foundation pit for anchoring.
2.Jet grouting and dewatering.
3.This engineering drill rig can be used for drilling geothermal
hole.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded
in 1956.it has developed core-drill machine, geologic exploration
drilling rig, anchoring drill rig,jet-grouting drill rig and so on.
At present, the products has been exported to Southeast Africa,
Asia and other global markets.
