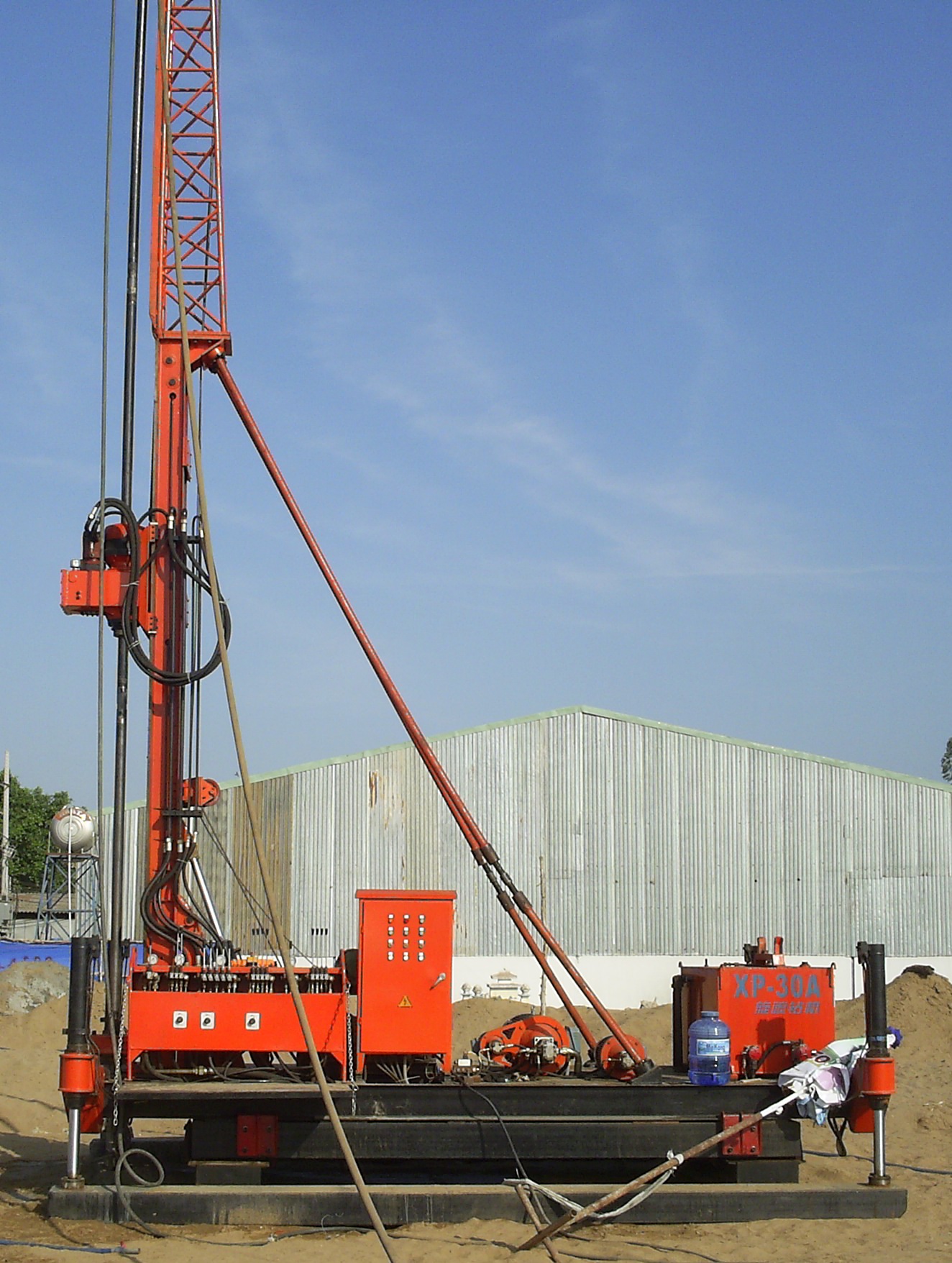

XPL-30B 16.5m Assistant Tower Jet Grouting Drilling Rig With Crawler
Mounted
Quick Detail:
1. XPL-30B drilling rig is one kind of full hydraulic power head
drilling rig.
2. During the jet grouting lifting, the depth of the rotary jet
shall not exceed the height of the assistant tower (16.5m). There
is no need to dismantle the drill rod.
3. Equipped with the main, vice winch and electrical control which
can reduce labor force and enhance production efficiency.
4. We also add stepless speed regulation module when the anchoring
is drilling, which makes the operation more convenient.
Description:
1. XP-30B drilling rig can accomplish drilling hole and jet
grouting process in once time when operating in some certain soft
layer. During the jet grouting lifting, the depth of the rotary jet
shall not exceed the height of the assistant tower (16.5m). There
is no need to dismantle the drill rod.
2. With good adaptability, this jet grouting drilling rig can be
configured with different modules and drilling tools, so as to
solve various jet grouting processes.
3. Besides jet grouting process, this jet grouting drilling rig is
available for the construction of anchoring technology.
4. The shifting and turning of the drill rig, speed change of power
head and drill lifting are all adopted hydraulic control, featuring
in flexible operation, saving time and labor cost.
5. The drill rigs adopt double winches and electrical control which
can reduce labor force and enhance production efficiency.
Specifications:
| Rotated jet | Aperture (mm) | Single: 400-800 Double: 600-1200
Triple: 800-1600 |
| Hole depth (mm) | 30-50 |
Hole angle(°)
| 0-90° |
| Output rotary speed of power head | 0-20 (without adjustable level) 10,25,30,40,75,120r/min |
| Output torque of power head | 3500N.m |
| Unit head lifting force (kN) | 60 |
| Unit head plus-pressure (kN) | 30 |
| Unit head normal lifting speed of drill (m/min) | 1-4.7 (with adjustable level) |
| Plus-pressure speed (m/min) | 2-9 |
| Stroke of power head (mm) | 3500 |
| Motor power (kW) | 30+7.5+1.5 |
Appearance of construction status
(length × width × height mm) | 5250×3200×19200 |
Appearance of transportation status
(length × width × height mm) | 6410×2250×2950 |
| Weight (kg) | About 8500 |
Applications:
1. For jet-grouting and anchoring.
2. Soft ground stabilization, seepage control of basement of
high-rise buildings, renovation of big river and levee,
reinforcement of railway, highway and pier, etc.
3. Singe pipe, duplex pipe, triple pipe.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded
in 1956.it has developed core-drill machine, geologic exploration
drilling rig, anchoring drill rig,jet-grouting drill rig and so on.
At present, the products has been exported to Southeast Africa,
Asia and other global markets.
