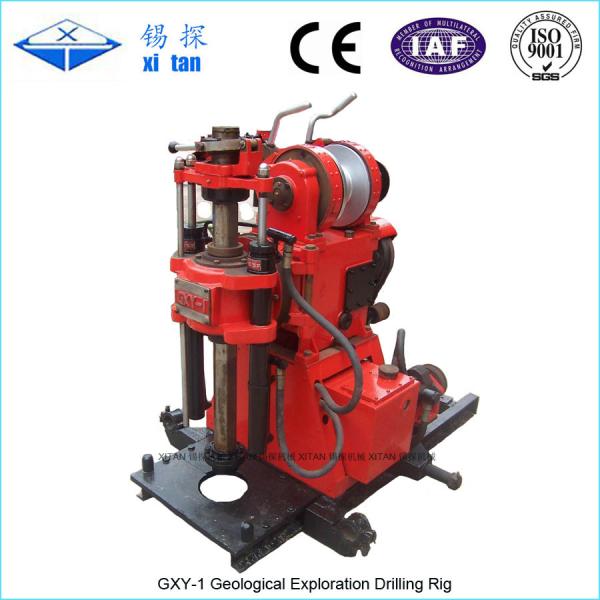

Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1

GXY-1 Core drilling rig with stroke 500mm

Hole depth	50m	Rod dia	150mm
Hole depth	150m	Rod dia	75mm
Hole angle(°)	360°
Spindle speed	Forward speed:61;163;338;654rpm
	Reverse speed:45rpm
Stroke of spindle	500mm
Max .lifting capacity	25KN
Max .feeding capacity	20KN
Max .distance from the spindle lower to the earth surface	600mm
Hoist	Max .lifting capacity (single line):	15KN
	Lifting speed:	0.2;0.52;1.05;2.06m/s
Power	Electric motor:	11kw,1500rpm
	Diesel engine	13kw,2200rpm
Weight	500kg
Dimensions (L×W×H)	1450×970×1280mm

1.GXY-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.

2.According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.

3.The drill is suitable in exploring core mine.

4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.

5.Oening the clinostat, it is easy to lift and loose the drill.

1.Engineering geological exploration.

2.Survey and exploration of solid mineral deposit.

3.Exploring core mine.

4.Inspecting hole of various concrete stucture.
