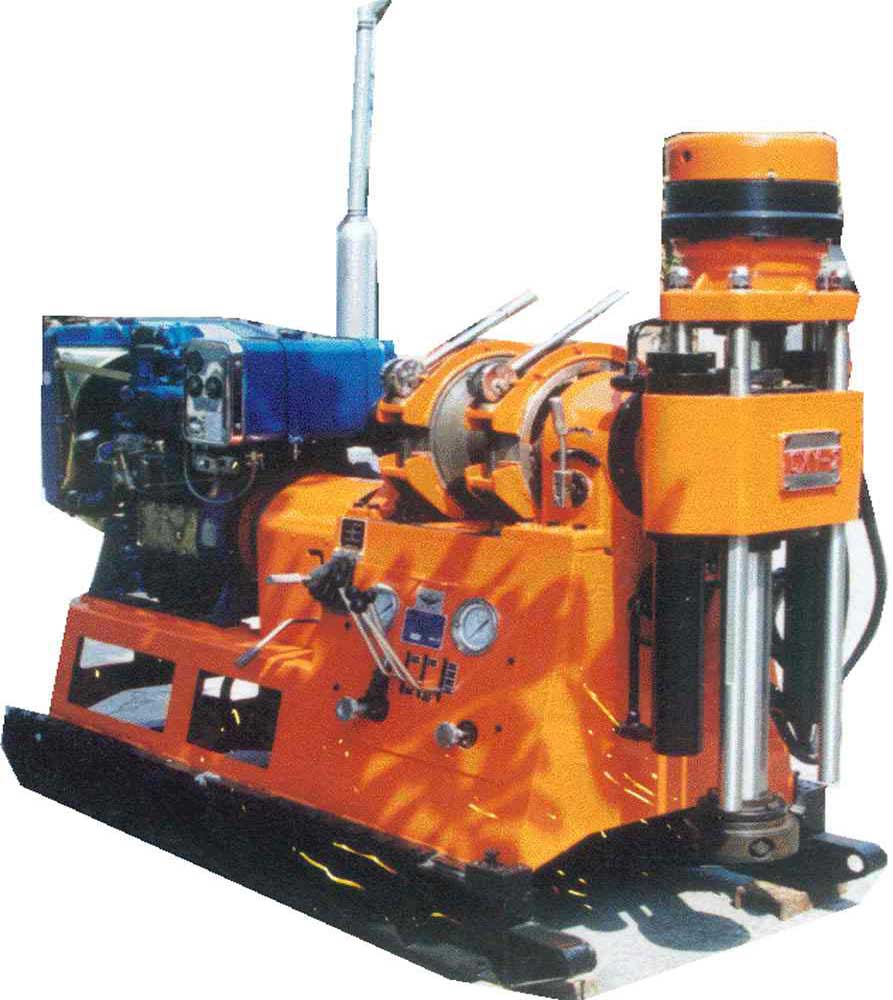

GXY-2B Hard Alloy Core Exploration Drilling Rig Directional Drilling For
Core Sampling
Quick Detail:
1. GXY-2B drilling rig is developed from GXY-2, the same technical
performance, structural features main increased vertical shaft
through hole, and relative to reduce the vertical shaft speed,
increase the vertical shaft torque.
2. It is particularly applicable to construction, water and
electricity engineering, highway, railway, port construction of
engineering construction. It is also suitable for engineering
geological prospecting, solid mineral’s survey and exploration,
water discharge tunnel.
3. It is convenient for you to treat trouble with two reverse
speeds.
Description:
1. Model GXY-2B drilling rig is a kind of spindle rotatory drilling
rig. It is suitable for engineering geological prospecting, solid
mineral’s survey and exploration, mound grout and drainage of all
kinds of concrete structure. It can choose bits, such as diamond
bits, hard alloy bits while drilling in accordance with different
formation.
2. GXY-2B drilling rig is developed from GXY-2,the same technical
performance, structural features main increased vertical shaft
through hole, and relative to reduce the vertical shaft speed,
increase the vertical shaft torque.
3. Light in weight, the rig can be disassembled easily, the biggest
apparatus is in 200 kg. The whole drill is in 1000kg, it can be
moved easily especially in mountain area.
4. It is particularly applicable to construction, water and
electricity engineering, highway, railway, port construction of
engineering construction. It is also suitable for engineering
geological prospecting, solid mineral’s survey and exploration,
water discharge tunnel.
Specifications:
Spindle I.D. | 80mm |
| Spindle speed | Forward speed:56-998rpm |
| Reverse speed:44-207rpm |
| Stroke of spindle | 600mm |
| Max .lifting capacity | 72KN |
| Max .feeding capacity | 54KN |
| Hoist | Max .lifting capacity (single line): | 30KN |
| Lifting speed: | 0.41-1.58m/s |
| Power | Electric motor: | Y180L-22-4 |
| Diesel engine | 395K2 |
| Weight | 1000kg |
| Dimensions (L×W×H) | 2160×950×1800mm |
Applications:
1.Engineering geological exploration.
2.Survey and exploration of solid mineral deposit.
3.Water discharge tunnel.
4.Inspecting hole of various concrete stucture.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded
in 1956.it has developed core-drill machine, geologic exploration
drilling rig, anchoring drill rig,jet-grouting drill rig and so on.
At present, the products has been exported to Southeast Africa,
Asia and other global markets.
