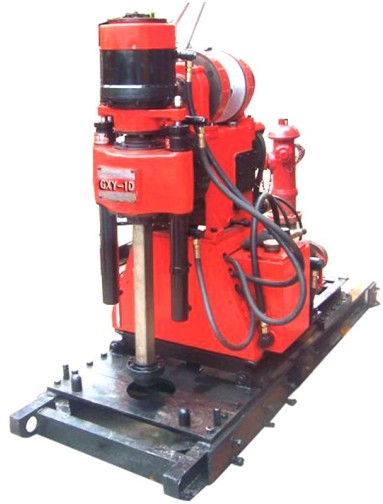

GXY-1D Mining Exploration Drilling Rig Skid Mounted , Blast Hole Drilling

GXY-1D Mining Exploration Drilling Rig Skid Mounted , Blast Hole Drilling

Quick Detail:

1. GXY-1D drilling rig, the improved product based on GXY-1 drill rig. It is utilized for rig exploration, blast hole drilling, core drilling and inspect hole of concrete.
2. The rig adopts the hydraulic chuck, it is strong and steady clamping force.
3. The drilling rig has various chassis mode like skid mounted, crawler mounted.
4. The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.

Description:

1. GXY-1D is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, inspect hole of various concrete structure, etc.
2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3. The rig and mud pump are motivated respectively.
4. The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.
5. The drilling rig has various chassis mode like skid mounted, crawler mounted.

Specifications:

Hole depth	30m,150m
Rod dia	150mm,75mm
Hole angle(°)	360°
Spindle speed	Forward speed:61;163;338;654rpm
	Reverse speed:45rpm
Stroke of spindle	500mm
Max .lifting capacity	25KN
Max .feeding capacity	20KN
Max .distance from the spindle lower to the earth surface	600mm
Hoist	Max .lifting capacity (single line):	15KN
	Lifting speed:	0.2;0.52;1.05;2.06m/s
Power	Electric motor:	11kw,1500rpm
	Diesel engine	11kw,2200rpm
Weight	650kg
Dimensions (L×W×H)	1980×970×1400mm

Applications:

1. Exploration prospecting.
2. Blast hole drilling.
3. Core drilling and inspect hole of concrete etc.

Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
