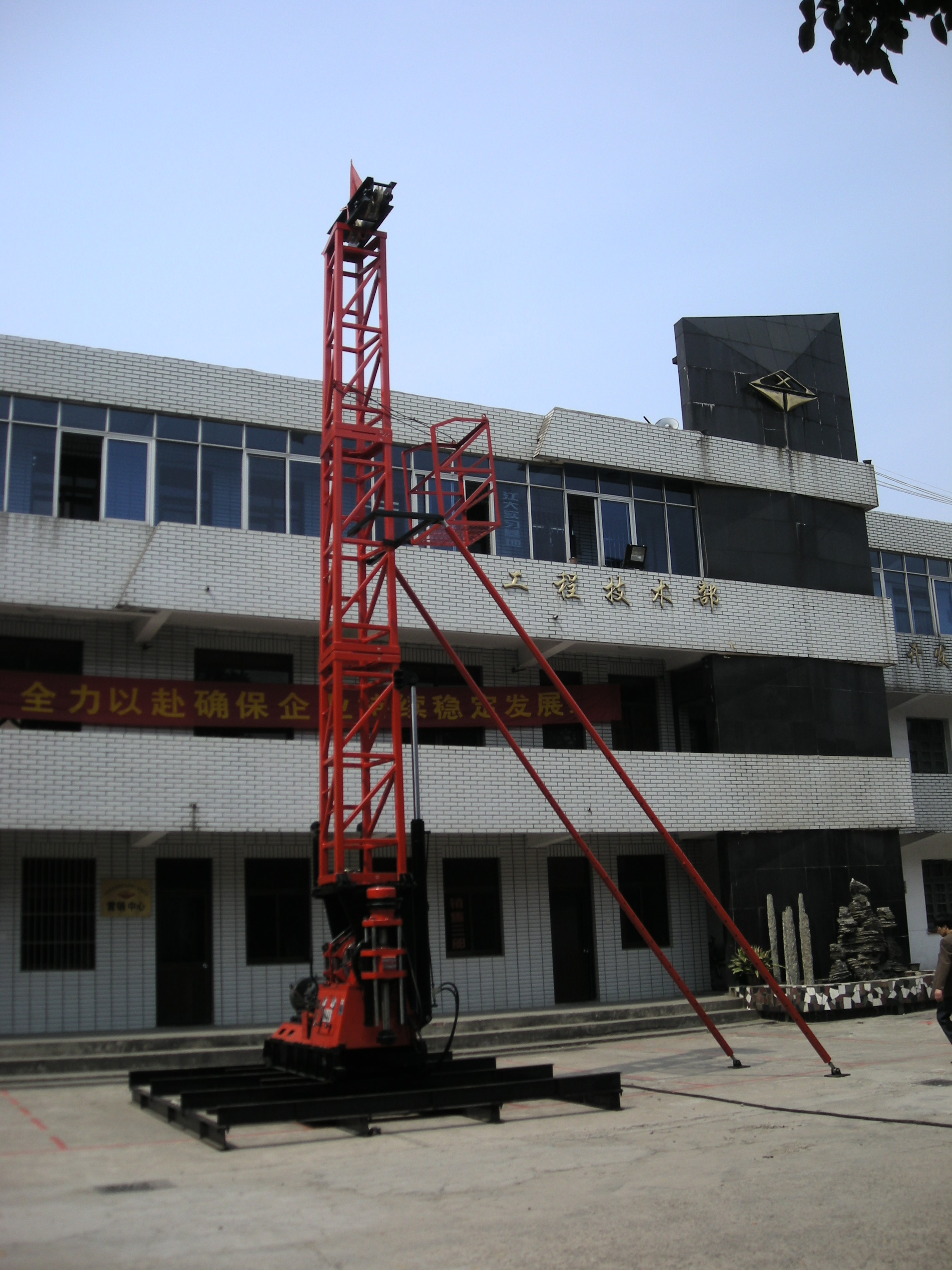

Lifting Drilling Rods Drilling Tower For Drilling Straight Inclined
Holes
Quick Detail:
1. With large Capacity lifting, type C could meet 12-18 ton,
drilling tower is suitable for geological exploration rig,it is for
drilling both straight and inclined holes.
2. The drill tower is pyramid-mast type. Being light in overall
weight, single component being light and limited in disassembly
quantity, the tower is convenient for transportation and
installation.
3. Occupying only a small area, the base costs less for land
digging and leveling, suitable for mountain area application.
Description:
1. With large Capacity lifting, type A could meet 16-30 ton,
drilling tower is suitable for geological exploration rig,it is for
drilling both straight and inclined holes.
2. In reasonable structure; height of each section 1.3m; With light
weight of single piece, it is easy and quick for installation.
3. It is adaptable and the steel base could be used for variety of
common longitudinal rigs with drilling depth from 800m to 1000m.
4. Occupying only a small area, the base costs less for land
digging and leveling, suitable for mountain area application.
Specifications:
| Type | TJC-9X |
| Nominal Height | 9.5m |
| Max Load of Cage | 16T |
| Number of Crowned Pulleys | 2-4pcs |
| Nominal Area of Base | 4000*3000mm |
Applications:
The tower body of XY-4T Drill Rig is used as lifting drill tools
for drilling vertical as well as inclined holes.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded
in 1956.it has developed core-drill machine, geologic exploration
drilling rig, anchoring drill rig,jet-grouting drill rig and so on.
At present, the products has been exported to Southeast Africa,
Asia and other global markets.
